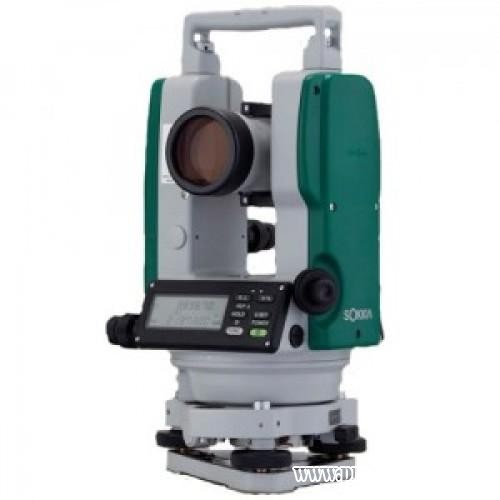

The Sokkia DT740 7 " digital theodolite simplifies layout and positioning jobs while maintaining speed and accuracy.

The new theodolite features cutting-edge power-saving technology and the industry-leading dust & water protection rating.

Extremely low power consumption on 4 AA batteries
Waterproof and Dustproof ( IP66)
Dual display

The theodolite come with lens cap, carrying case, plumb bob, tool pouch, 4 AA batteries, vinyl cover, cleaning cloth and operator’ s
manual.

SPECIFICATION :
TELESCOPE
Length 149mm ( 5.9in)
Objective aperture 45mm ( 1.8in)
Magnification 30x
Resolving power 2.5 "
Image/ Field of view Erect 1o30' ( 26m/ 1, 000m)
Minimum focus 0.9m ( 3.0ft)
Stadia Multiplication constant: 100
Additive constant : 0
Reticle illumination Yes
ANGLE MEASUREMENT
Method Absolute rotary encoder scanning
Detecting Horizontal : Diametrical
Vertical : Single
Display resolutions 5 " / 10 "
1/ 2mgon
Accuracy 7 "
Circle diameter 71mm ( 2.8in)
Automatic compensation range -
GENERAL
Control panel layout On both faces
Display LCD, 7 digits x 2 lines, backlight
Interface -
Optical plummet Magnification : 3x
Field of view 3o
Min. Focus 0.5m ( 1.64ft)
Sensitivity of levels Plate level : 40 " / 2mm
Circular level : 10' / 2mm
Tribrach Detachable
Operating temperature -20 to 50oC ( -4 to 122oF)
Dust and water protection IP66 ( IEC60529 : 2001)
Size ( w/ handle) W188 x D149 x H313 mm
Weight ( w/ batteries) 4.1kg ( 9.0lbs)
POWER SUPPLY
Battery LR6 / AA Batteries x 4
Operating time
w/ alkaline batteries
at 20oC ( 68oF) 150 hours
