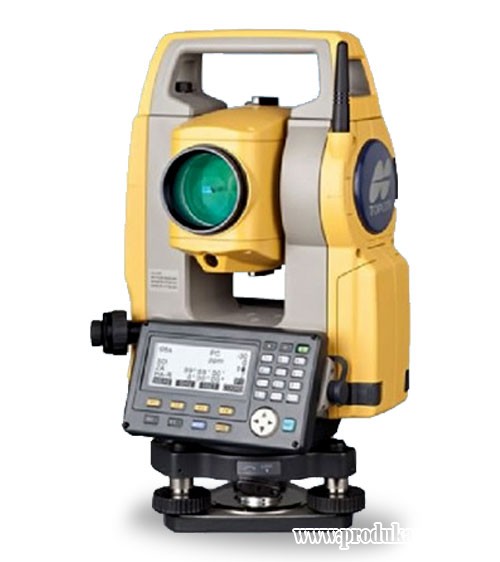

Spesifikasi - Topcon ES 105
QUICK Specifications
Angle Measurement
Min. Resolution/ Accuracy
ES-101 0.5” / 1”
ES-102 1” / 2”
ES-103 1” / 3”
ES-105 1” / 5”
ES-107 1” / 7”
IACS ( Independent Angle Calibration System) Standard om 1” & 2” models
Compensation Dual-axis compensator
Distance Measurement
Prism EDM Range 4000m ( ES-107 3000m)
Prism EDM Accuracy 2mm+ 2ppm
Non-Prism Range 500m
Non-Prism Accuracy 3mm+ 2ppm ( 0.3-200m)
Measuring Time Fine: 0.9 sec
Rapid: 0.7 sec
Tracking: 0.3 sec
Communications
LongLink™ rover communications utilizing Class 1 Bluetooth
USB 2.0 Slot
RS-232C Serial
General
Display/ Keyboard Dual, Graphic, Backlit
LCD ( ES-107 Single)
Battery Operation up to 36 hours
Dust/ Water Protection IP66
Wireless Connection Bluetooth Class 1
Operating Range

-20C to + 50C
-30C to + 50C *
-20C to + 60C * *

Paket Penjualan:
Available Accessories:

• Unit Topcon Totalstation
• 2 x Aluminum Tripod
• 1 x Prisma Polygon
• 1 x Range Pole
• 1 x Single Prism
• 1 x Cable Data
• 1 x Software Data
